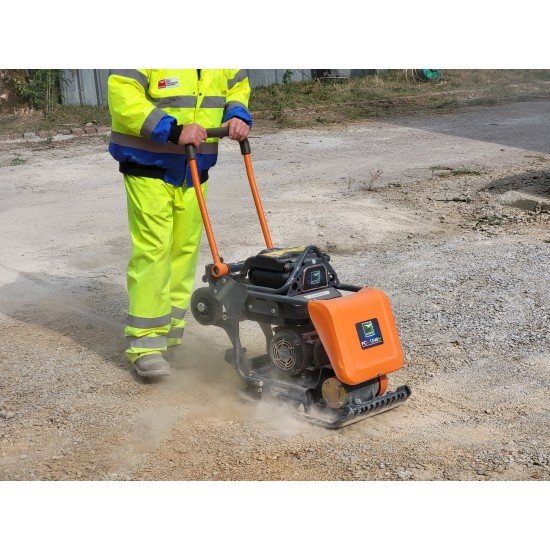

FC4050E PCX 13/40E Battery Forward Plate
Features:
This robust, professional-grade, battery-powered combination compaction plate is equipped with an emission-free, Li-ion battery motor to meet all your compaction needs, especially for indoor use and areas with limited ventilation. It delivers low HAV values and matches the high-performance compaction of its petrol-powered counterpart, but without the environmental impact... ...Creating a Sustainable Future!
- Fitted with a robust, highly efficient brushless Honda eGX motor
- Lithium-ion battery, interchangeable with other Honda eGX-powered Altrad Belle products- Environmentally friendly and emission-free, suitable for indoor use and poorly ventilated areas like basements and tunnels
- Low noise level, allowing for extended working hours and use in noise-restricted areas
- High-performance 13kN vibration unit, providing excellent travel speed and compaction force to reduce operating times
- Low operating HAV levels, offering more than 8 hours of operator trigger time
- Foldable mounted guide handle for superior maneuverability, with the ability to lower for operation under obstacles and close to form work
- Reinforced centrifugal clutch for longer belt life and simplified belt adjustment
- Single switch operation for easy starting of the power unit, with no choke or recoil start
- 3-speed selector for slower speeds when working around obstacles
- No routine power unit maintenance, eliminating servicing and costly downtime due to repairs or blocked carburetors
- Robust protective battery cover and steel sub-frame, with an integrated battery power level viewing window
- Lifting points and front lift cage for easier loading and unloading, providing operator convenience
- Optional 9.5-liter water tank integrated into the main frame for added protection
- Fully protected spray bar, easily positioned, with integral paving pad clamp points
- Angled holes on the spray bar for complete water coverage across the full width, preventing asphalt pickup on the plate bottom
- Life-lubricated vibration bearings
- Block paving pad and wheel kit options available
- Customer colour options available
| Weight (kg) | 89 |
|---|---|
| Ref | FC4050E |
| Model | PCX 13/40E+ |
| Frequency (hz) | 101 |
| Centrifugal Force (kN) | 13 |
| Travel Speed (m/min) | 20 |
| Max Gradient (°) | 20 |
| Motor RPM | 3600 / 3000 / 2800 |
| Motor Power (Hp/kW) | 2.2 / 1.6 |
| Plate Size W x L (mm) | 400 x 606 |
| Static Pressure (kg/m²) | 560 |
| Vibration (m/sec²) | <2.5 |
| 80% Battery Charge Time (mins) | 50 |
| 100% Battery Charge Time (mins) | 75 |
